Product details of Netac N930E Pro M.2 NVMe SSD PCIE Gen3 4 Channel Solid State Drive Disk
- Transmission interface: M.2 M Key
- Transport protocol: PCIe Gen3 X4Channel
- Transmission speed: 8Gbps
- Controller: SM2263XT (main) or other
- Nand Flash Type: TLC
- Working Voltage: 3.3V
Features:

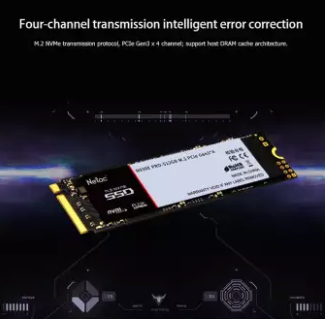

1. M.2 NVMe transmission protocol, PCIe Gen3 x 4 channel; support host DRAM cache architecture.
2. Conform to M.2 2280 specification.
3. Support LDPC intelligent error correction algorithm to ensure data security.
4. Adopt TLC virtual cache technology, effectively improve the data transmission speed.
5. Support wear-leveling technology, balance the number of flashes erase and write, extend the service life.
6. Support TRIM command, SMART and Dev-Sleep mode.
7. Without any sensitive machine parts, effective anti-vibration, quiet operation and low consumption.
Specifications:
Capacity:
128GB: about 119.2GB
256GB: about 238.4GB
512GB: about 476.8GB
Transmission interface: M.2 M Key
Transport protocol: PCIe Gen3 X4Channel
Transmission speed: 8Gbps
Read/write speed:
128GB: 1591MB/s, 594MB/s
256GB: 1871MB/s, 1145MB/s
512GB: 2018MB/s, 1309MB/s
1TB: 3018MB/s, 2309MB/s
Controller: SM2263XT (main) or other
Nand Flash Type: TLC
Working Voltage: 3.3V
Working Temperature: 0℃-70℃
Storage Temperature: -40℃-85 ℃
Color: Random
Size: 80 X 22 X 3.5mm/3.15 X 0.87 X 0.14"
Warm Tips:
-M.2 interface SSD mainly uses B Key (Socket2) and M Key (Socket3)
-B Key mainly supports SATA bus and PCIe X2 bus
-M Key mainly supports PCIe X4 bus
-B+M Key is mainly used for some motherboards compatible with SATA and PCIE two kinds of bus M. 2 according to the port.
Special Note:
1. The interface of B Key and M Key is incompatible with each other. This type is an M.2 M Key interface. So please confirm the specification of the M.2 interface of the device before purchase to avoid unnecessary losses such as device burning or SSD burning caused by wrong purchase. Our will not be responsible for damage of SSD caused by improper operation.
2. According to different production batches, there will be differences in PCB color, chip layout and silk print logo of SSD, but they are all the original products that have been strictly tested and will not affect the use. Please focus on the actual product specifications, product pictures are for reference only.
3. The definition of hard disk by the hard disk manufacturer is different from the computer's algorithm for hard disk capacity. As a result, there is an error between the capacity of hard disk identification and the actual capacity shown in the operating system. Please forgive it, Thank you!
Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.
