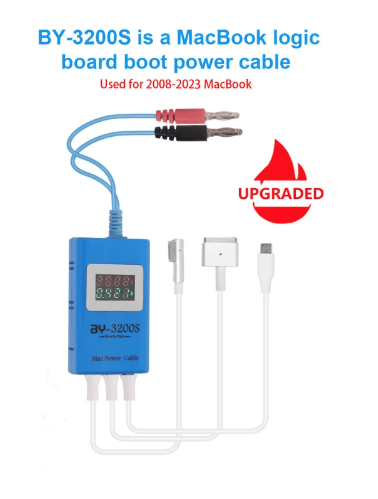

Upgraded BY-3200S Mac 3 In 1 Power Cable
Features & Functions
·Support MacBook models from 2008-2022, 3 Types of power cable (T-style, L-style, Type-C)
MacBook Pro (13.3"/15.4"/16"/17" )
A1297 A1278 A1286 A1502 A1425 A1398 A1706 A1707
A1708 A1989 A1990 A2159 A2141 A2289 A2251 A2338
MacBook Air (11"/13.3")
A1370 A1369 A1465 A1466 A1932 A2179 A2337
MacBook (12")
A1534
·Support start-up and enter into the system with motherboard only can solve the no start-up issue which is caused by the BATLOW# signal abnormal
(15.4" and 16" model with T2 chip models also supported)
·Support the latest models with T2 or M1 chip to fast charge and enter into the system with motherboard only
(15.4" and 16" can start-up with a single board, no need to buckle the battery)
·Support read the current value from DC power supply, which is convenient for MacBook repair troubleshooting
· With Intelligent and Comprehensive Protections
Overcharge protection
Overcurrent protection
Overvoltage protection
Constant temperature protection
Short circuit protection

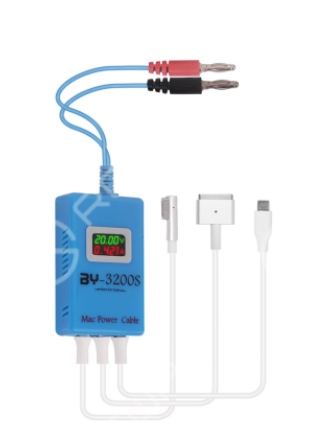

Different Interfaces for Different MacBook Models
L-Interface for 2008-2011 MacBooks
- MacBook 11" / 13.3" / 15.4" / 17"
- MacBook Air
- MacBook Pro
T-Interface for 2012-2015 MacBooks
- MacBook 11" / 13.3" / 15.4"
- MacBook Air
- MacBook Pro
Type-C Interface for 2015-2022 MacBooks
- MacBook 12" / 13.3" / 15.4" / 16"
- MacBook Air
- MacBook Pro

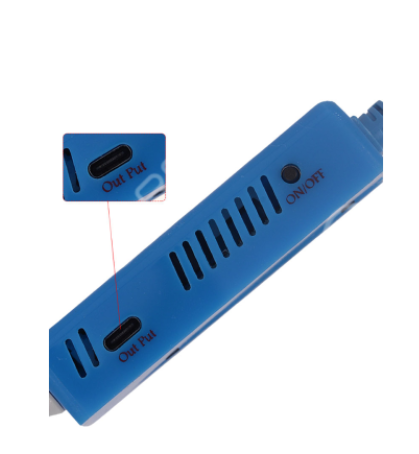

(Note: Accepts fast charging of tablets and phones with Type-C interfaces, check current with a power meter to fix faults.)
Specifications

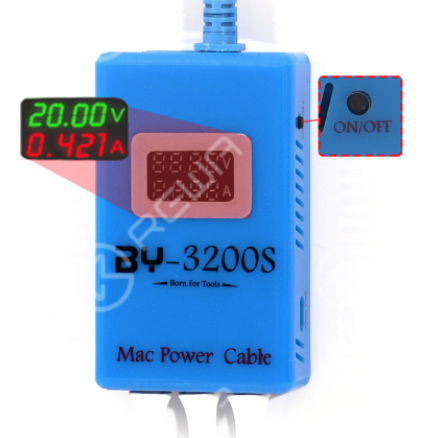

- 3 digital LCD display the motherboard input voltage (* When using L-style or T-style cable, the ON/OFF switch can be used to control the voltage display or no display)
- Power cable length: 1m
- Input voltage: 20~21V DC
- Max Input Current: 20A
- Support 30W/45W/61W/65W/85W/87W/96W fast charge

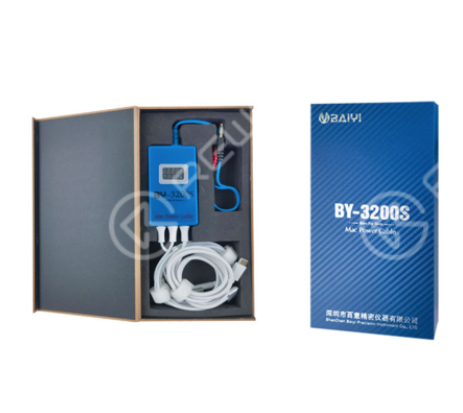

Packing
- Hard carton box packing
- Size:205*120*35mm
