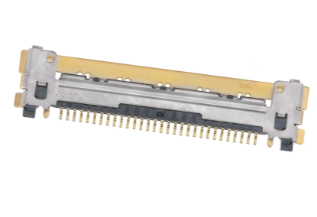

Apple LCD Cable Connector (30 pin)

• This connector can be used for replacing a damaged LCD connector on the logic board.
• This connector may be referred to as an LVDS connector or DisplayPort (DP, eDP) connector, depending on which display standard the device uses.
• Installation requires soldering equipment and skills.

WHAT'S INCLUDED

• 1 - DisplayPort/LVDS cable connector (30Pin)

IDENTIFYING NUMBERS

• APN  :20525-130E-01, 518S0787, 518S0829



  •
  •

TECH SPECS

• Brand: I-PEX
• Connector Material: Copper Alloy
• Connector Type: Receptacle
• Gender: Female
• Mounting Type: Surface Mount, Right Angle
• Number of Positions: 30 pin
• Pitch: 0.4 mm
• Series: CABLINE-CA
• Style: Board to Cable/Wire

WARRANTY

No Warranty

COMPATIBILITY

MacBook Air 11" A1465

• MacBookAir5,1 Mid 2012: MD223LL/A (1.7 GHz Core i5)
• MacBookAir5,1 Mid 2012: MD224LL/A (1.7 GHz Core i5)
• MacBookAir5,1 Mid 2012: MD224LL/A (2.0 GHz Core i7)
• MacBookAir6,1 Mid 2013: MD711LL/A (1.3 GHz Core i5)
• MacBookAir6,1 Mid 2013: MD712LL/A (1.3 GHz Core i5)
• MacBookAir6,1 Mid 2013: MD712LL/A (1.7 GHz Core i7)
• MacBookAir6,1 Early 2014: MD711LL/B (1.4 GHz Core i5)
• MacBookAir6,1 Early 2014: MD712LL/B (1.4 GHz Core i5)
• MacBookAir6,1 Early 2014: MD712LL/B (1.7 GHz Core i7)
• MacBookAir7,1 Early 2015: MJVM2LL/A (1.6 GHz Core i5 or 2.2 GHz Core i7)
• MacBookAir7,1 Early 2015: MJVP2LL/A (1.6 GHz Core i5 or 2.2 GHz Core i7)

MacBook Air 13" A1466

• MacBookAir5,2 Mid 2012: MD231LL/A (1.8 GHz Core i5)
• MacBookAir5,2 Mid 2012: MD232LL/A (1.8 GHz Core i5)
• MacBookAir5,2 Mid 2012: MD232LL/A (2.0 GHz Core i7)
• MacBookAir5,2 Mid 2012: MD846LL/A (2.0 GHz Core i7)
• MacBookAir6,2 Mid 2013: MD760LL/A (1.3 GHz Core i5)
• MacBookAir6,2 Mid 2013: MD761LL/A (1.3 GHz Core i5)
• MacBookAir6,2 Mid 2013: MD761LL/A (1.7 GHz Core i7)
• MacBookAir6,2 Early 2014: MD760LL/B (1.4 GHz Core i5)
• MacBookAir6,2 Early 2014: MD761LL/B (1.4 GHz Core i5)
• MacBookAir6,2 Early 2014: MD761LL/B (1.7 GHz Core i7)
• MacBookAir7,2 Early 2015: MJVE2LL/A (1.6 GHz Core i5 or 2.2 GHz Core i7)
• MacBookAir7,2 Early 2015: MJVG2LL/A (1.6 GHz Core i5 or 2.2 GHz Core i7)
• MacBookAir7,2 Mid 2017: MQD42LL/A (1.8 GHz Core i5)
• MacBookAir7,2 Mid 2017: MQD32LL/A (1.8GHz Core i5)

MacBook Pro Unibody 13" A1278

• MacBookPro9,2 Mid 2012: MD101LL/A (2.5 GHz Core i5)
• MacBookPro9,2 Mid 2012: MD102LL/A (2.9 GHz Core i7)

MacBook Pro Retina 13" A1425

• MacBookPro10,2 Retina Late 2012: MD212LL/A (2.5 GHz i5 or 2.9 GHz i7)
• MacBookPro10,2 Retina Late 2012: MD213LL/A (2.5 GHz i5 or 2.9 GHz i7)
• MacBookPro10,2 Early 2013: ME662LL/A (2.6 GHz Core i5)
• MacBookPro10,2 Early 2013: ME662LL/A (3.0 GHz Core i7)

MacBook Pro Retina 13" A1502

• MacBookPro11,1 Late 2013: ME864LL/A (2.4 Core i5)
• MacBookPro11,1 Late 2013: ME866LL/A (2.6 Core i5)
• MacBookPro11,1 Late 2013: ME866LL/A (2.8 Core i7)
• MacBookPro11,1 Mid 2014: MGX72LL/A (2.6 Core i5)
• MacBookPro11,1 Mid 2014: MGX92LL/A (2.8 Core i5)
• MacBookPro11,1 Mid 2014: MGX92LL/A (3.0 Core i7)
• MacBookPro12,1 Early 2015: MF839LL/A (2.7 GHz Core i5)
• MacBookPro12,1 Early 2015: MF841LL/A (2.9 GHz Core i5)
• MacBookPro12,1 Early 2015: MF843LL/A (3.1 GHz Core i7)

MacBook Pro Retina 15" A1398

• MacBookPro10,1 Retina Mid 2012: MC975LL/A (2.3 Core i7)
• MacBookPro10,1 Retina Mid 2012: MC976LL/A (2.6 Core i7)
• MacBookPro10,1 Retina Mid 2012: MD831LL/A (2.7 Core i7)
• MacBookPro10,1 Early 2013: ME664LL/A (2.4 Core i7)v
• MacBookPro10,1 Early 2013: ME665LL/A (2.7 Core i7)
• MacBookPro10,1 Early 2013: ME665LL/A (2.8 Core i7)
• MacBookPro11,2 Late 2013 (IG): ME293LL/A (2.0 GHz Core i7)
• MacBookPro11,2 Late 2013 (IG): ME293LL/A (2.3 GHz Core i7)
• MacBookPro11,2 Late 2013 (IG): ME293LL/A (2.6 GHz Core i7)
• MacBookPro11,2 Mid 2014 (IG): MGXA2LL/A (2.2 GHz Core i7)
• MacBookPro11,2 Mid 2014 (IG): MGXA2LL/A (2.5 GHz Core i7)
• MacBookPro11,2 Mid 2014 (IG): MGXA2LL/A (2.8 GHz Core i7)
• MacBookPro11,3 Late 2013 (DG): ME294LL/A (2.3 GHz Core i7)
• MacBookPro11,3 Late 2013 (DG): ME294LL/A (2.6 GHz Core i7)
• MacBookPro11,3 Mid 2014 (DG): MGXC2LL/A (2.5 GHz Core i7)
• MacBookPro11,3 Mid 2014 (DG): MGXC2LL/A (2.8 GHz Core i7)
• MacBookPro11,4 Mid 2015 (IG): MJLQ2LL/A (2.2 GHz Core i7)
• MacBookPro11,4 Mid 2015 (IG): MJLQ2LL/A BTO (2.5 GHz Core i7)
• MacBookPro11,4 Mid 2015 (IG): MJLQ2LL/A BTO (2.8 GHz Core i7)
• MacBookPro11,5 Mid 2015 (DG): MJLT2LL/A (2.5 GHz Core i7)
• MacBookPro11,5 Mid 2015 (DG): MJLT2LL/A BTO (2.8 GHz Core i7)

iMac 21.5" A1418

• iMac13,1 Late 2012: MD093LL/A (2.7 GHz Core i5)
• iMac13,1 Late 2012: MD094LL/A (2.9 GHz Core i5)
• iMac13,1 Late 2012: MD094LL/A (3.1 GHz Core i7)
• iMac13,1 Early 2013: ME699LL/A (3.3 GHz Core i3)
