A1534 LCD Connector Pin 30 Pin 0.4 mm

  • Click to enlarge
  • Click to enlarge
A1534 LCD Connector Pin 30 Pin 0.4 mm

Tap for gallery

RM95.00


Product Information
Specification

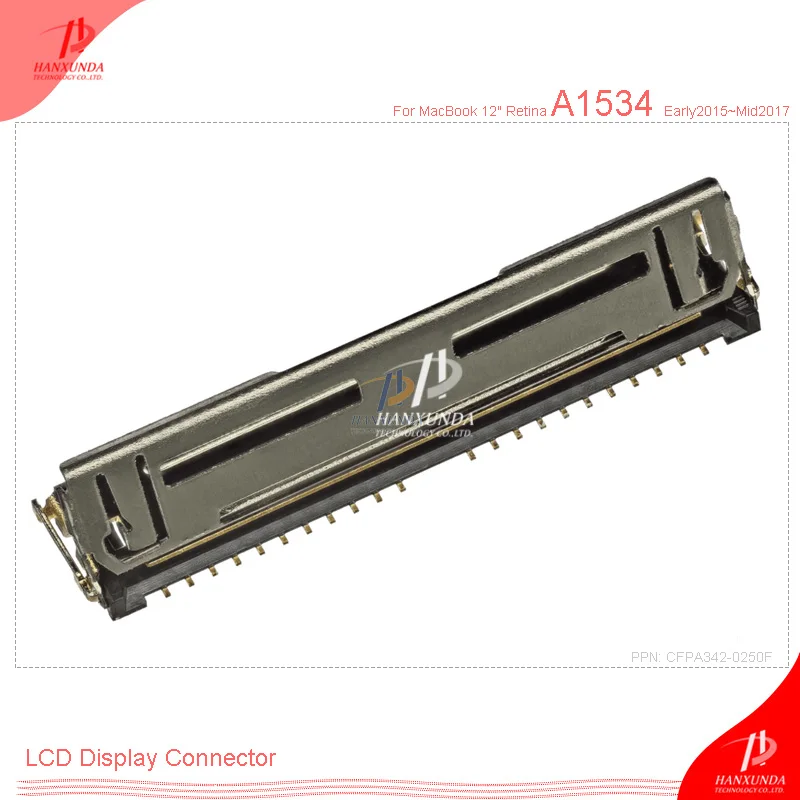

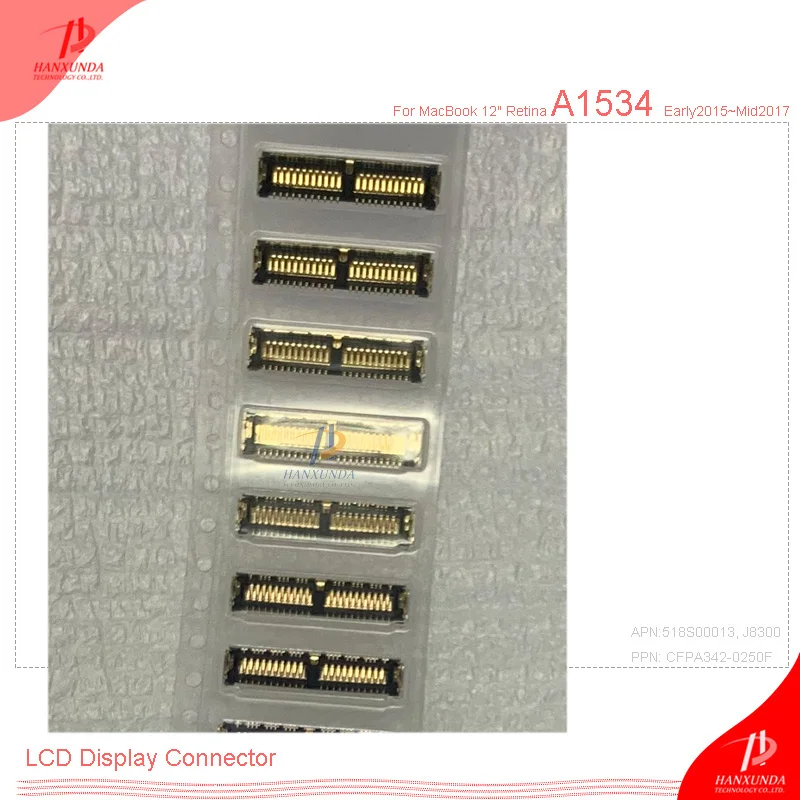

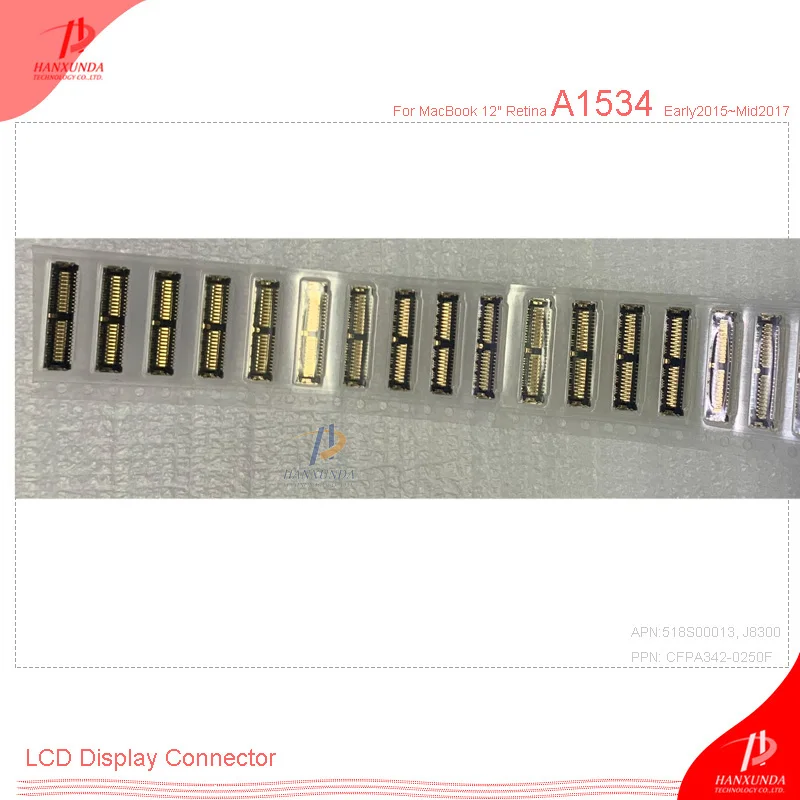

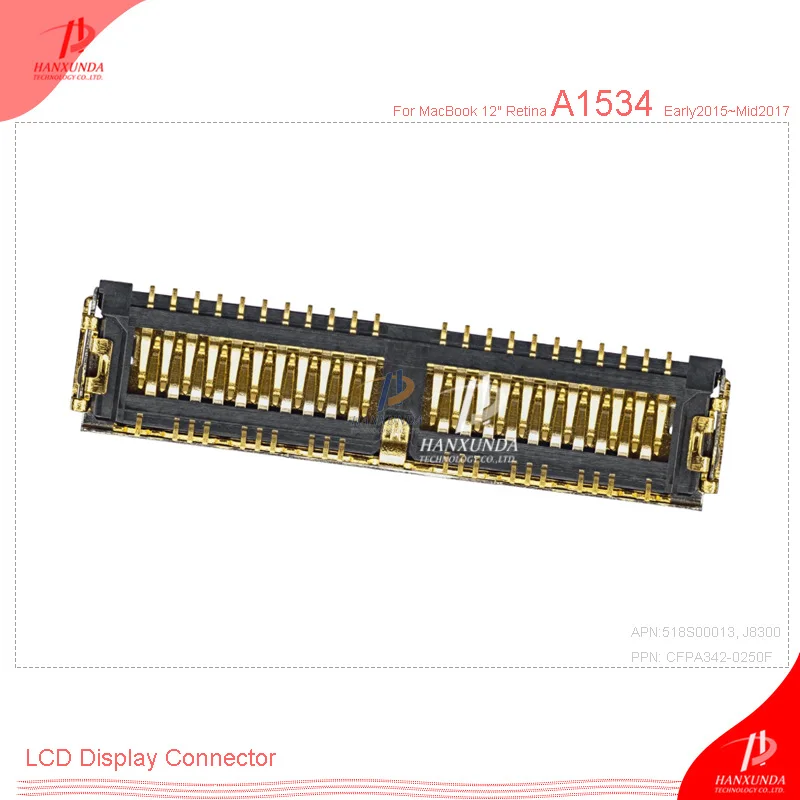

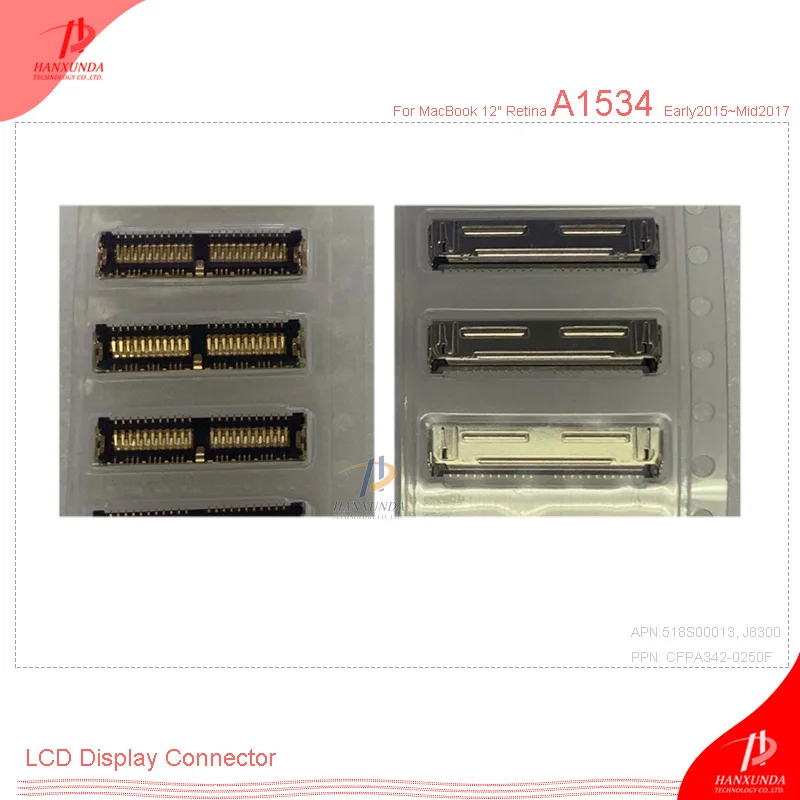

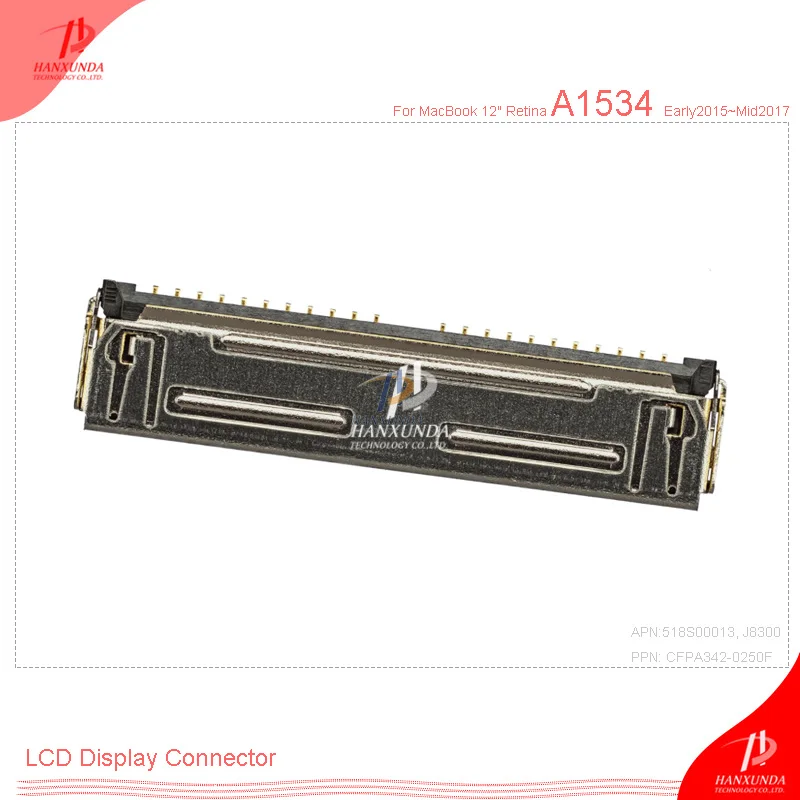

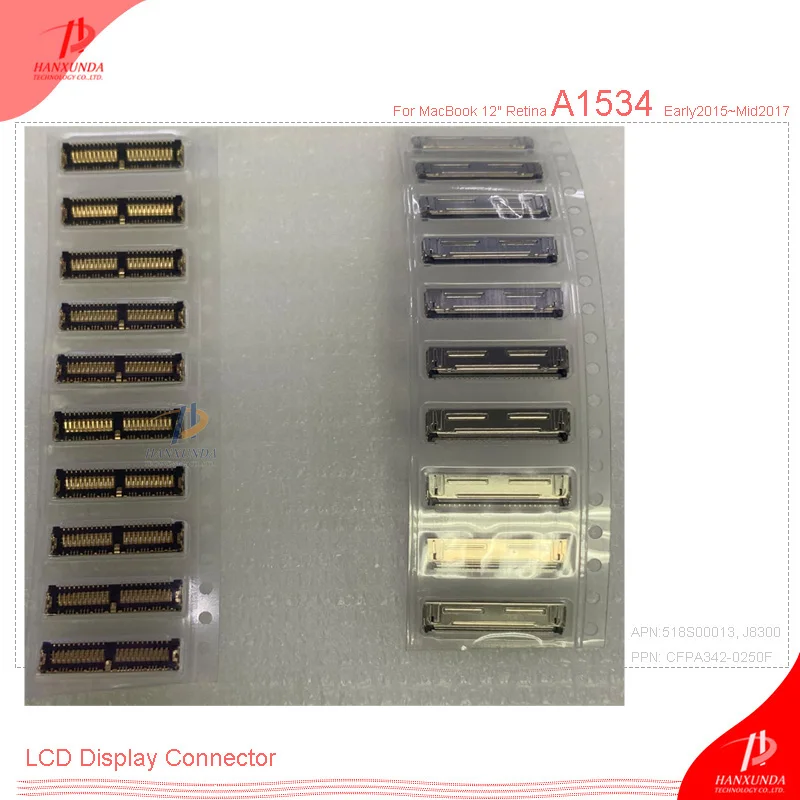

 A1534 eDP LCD Display Connector CFPA342-0250F 30pin 0.4mm between the LCD panel and the logic board



LCD DisplayPort (DP) Cable Connector (30 Pin)

Replacement eDP Display Connector for attachment of the cable between the LCD panel and the logic board.

Identified on schematics diagrams and board view software as APN 518S00013 and J8300.

Installation requires soldering equipment and skills.



WHAT'S INCLUDED



1 - eDP Display Connector



APN  : 518S00013, J8300

PPN  : CFPA342-0250F



TECH SPECS

Warranty : No Warranty

Brand: I-P EX

Connector Material: Copper Alloy

Connector Type: Receptacle

Gender: Female

Mounting Type: Surface Mount, Right Angle

Number of Positions: 30 pin

Pitch: 0.4 mm

Series: CABLINE-CA

Style: Board to Cable/Wire



xiushi 07 picture up

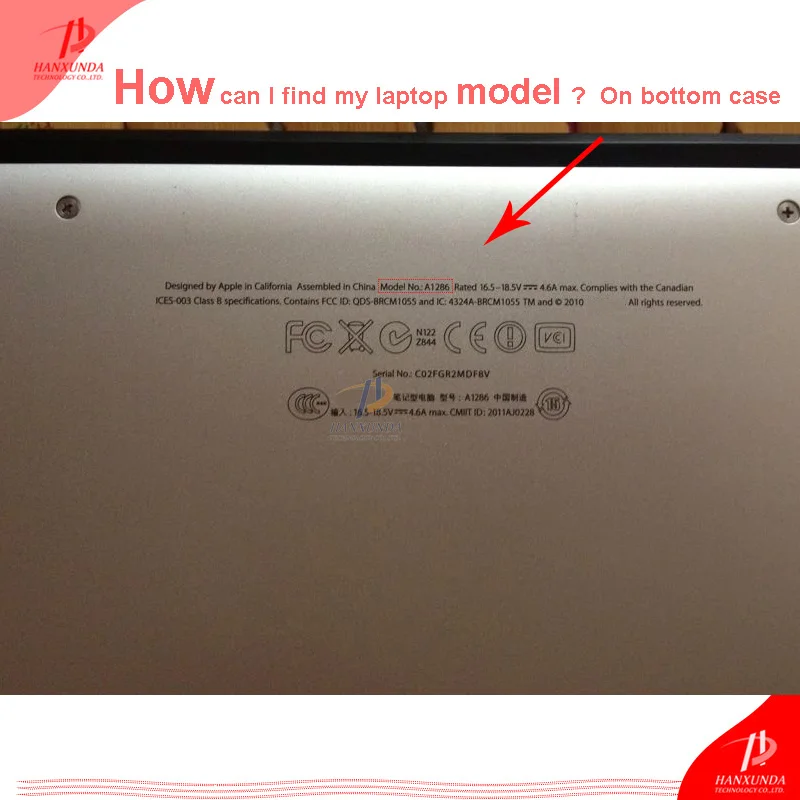

macbook model

1534 lcd 011534 lcd 021534 lcd 031534 lcd 071534 lcd 051534 lcd 041534 lcd 06



xiushi compatibility up





For MacBook 12" Retina A1534



for MacBook8,1 Early 2015 (Gold): MK4M2LL/A (1.1 GHz Core M)

for MacBook8,1 Early 2015 (Space Gray): MJY32LL/A (1.1 GHz Core M)

for MacBook8,1 Early 2015 (Silver): MF855LL/A (1.1 GHz Core M)

for MacBook8,1 Early 2015 (Gold): MK4N2LL/A (1.2 GHz or 1.3 GHz Core M)

for MacBook8,1 Early 2015 (Space Gray): MJY42LL/A (1.2 GHz or 1.3 GHz Core M)

for MacBook8,1 Early 2015 (Silver): MF865LL/A (1.2 GHz or 1.3 GHz Core M)

for MacBook9,1 Early 2016 (Silver): MLHA2LL/A (1.1 GHz Core M3)

for MacBook9,1 Early 2016 (Space Grey): MLH72LL/A (1.1 GHz Core M3)

for MacBook9,1 Early 2016 (Gold): MLHE2LL/A (1.1 GHz Core M3)

for MacBook9,1 Early 2016 (Rose Gold): MMGL2LL/A (1.1 GHz Core M3)

for MacBook9,1 Early 2016 (Silver): MLHC2LL/A (1.2 GHz Core M5)

for MacBook9,1 Early 2016 (Space Grey): MLH82LL/A (1.2 GHz Core M5)

for MacBook9,1 Early 2016 (Gold): MLHF2LL/A (1.2 GHz Core M5)

for MacBook9,1 Early 2016 (Rose Gold): MMGM2LL/A (1.2 GHz Core M5)

for MacBook9,1 Early 2016 (Silver): BTO/CTO (1.3 GHz Core M7)

for MacBook9,1 Early 2016 (Space Grey): BTO/CTO (1.3 GHz Core M7)

for MacBook9,1 Early 2016 (Gold): BTO/CTO (1.3 GHz Core M7)

for MacBook9,1 Early 2016 (Rose Gold): BTO/CTO (1.3 GHz Core M7)

for MacBook10,1 Mid 2017 (Silver): MNYF2LL/A (1.2 GHz Core M3)

for MacBook10,1 Mid 2017 (Space Grey): MNYF2LL/A (1.2 GHz Core M3)

for MacBook10,1 Mid 2017 (Gold): MNYF2LL/A (1.2 GHz Core M3)

for MacBook10,1 Mid 2017 (Rose Gold): MNYF2LL/A (1.2 GHz Core M3)

for MacBook10,1 Mid 2017 (Silver): MNYG2LL/A (1.3 GHz Core i5)

for MacBook10,1 Mid 2017 (Space Grey): MNYG2LL/A (1.3 GHz Core i5)

for MacBook10,1 Mid 2017 (Gold):MNYG2LL/A (1.3 GHz Core i5)

for MacBook10,1 Mid 2017 (Rose Gold): MNYG2LL/A (1.3 GHz Core i5)

for MacBook10,1 Mid 2017 (Silver): BTO/CTO (1.4 GHz Core i7)

for MacBook10,1 Mid 2017 (Space Grey): BTO/CTO (1.4 GHz Core i7)

for MacBook10,1 Mid 2017 (Gold): BTO/CTO (1.4 GHz Core i7)

for MacBook10,1 Mid 2017 (Rose Gold): BTO/CTO (1.4 GHz Core i7)

Product CodeA1599ZPZ38
Stock Level2
ConditionNew
Weight0.1kg
