Sintech SSD Adapter For Macbook Air 2012

Tap for gallery

RM60.00

This product is currently out of stock


Product Information
Specification

Product details of M.2 NGFF SSD to 18+8pin SSD Adapter Card for MacBook Air 2012 A1465 A1466

  • Quality Assurance
  • Supply from stock
  • New store promotion
  • High quality and 100%New
  • Made by durable materials

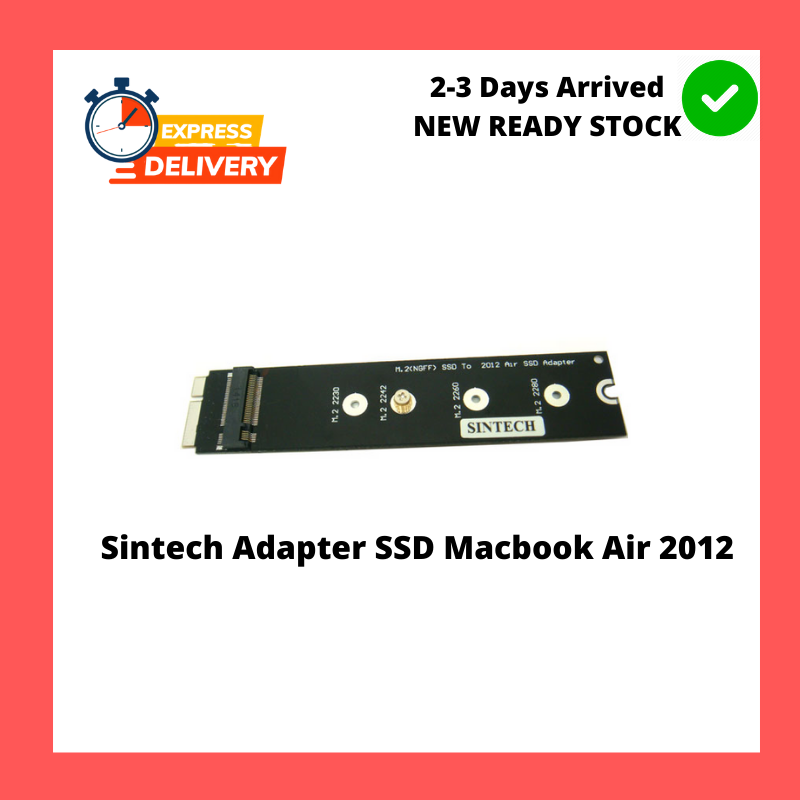

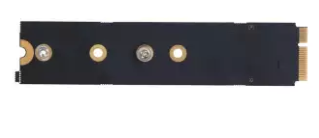

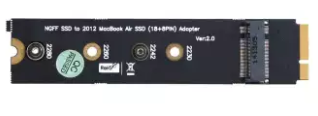

M.2 NGFF SSD to 18+8pin SSD Adapter Card for MacBook Air 2012 A1465 A1466


ST-M2AIR M.2(NGFF) SATA KEY B+M SSD to 2012 MACBOOK Air adapter card as MD224 MD223 MD231 MD232 ssd is used to alow M.2 NGFF SSD replace SSD of 2012 MACBOOK Air MD224 MD223 MD231 MD232.
1. can replace the following SSD models from 2012 MACBOOK Air MD224 MD223 MD231 MD232:
SSD: toshiba THNSNS064GMFP, toshiba THNSNS128GMFP, Samsung MZ-EPC5120/0A2 (512GB)
2. size is same as 2012 Air SSD: 109x24mms.
3. plug and play,no need drivers .
4. The storage space is optional,support 4 sizes: type 2230,2242,2260,2280.
5. NO need extra power supply.

M.2 NGFF SSD to 26Pin Adapter Converter Card for MacBook Air 2012 A1465 A1466

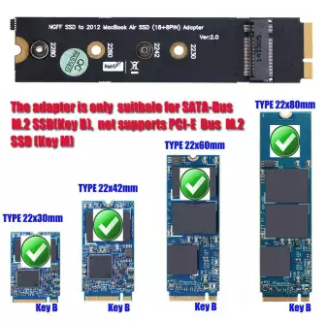

About M.2 NGFF SSD interface standard:

1. Socket 2(B +M key):there are SATA(such as THNSNH128G8NT/THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCIe X2(such as PX-AG128M6E/PX-AG128M6E/SD6PP4M models of SSD) two different transfer mode.
2. Socket 3(M key):PCIe X4(such as MZHPU128HCGM and MZHPU512HCGL models of SSD) transfer mode.

About SSD for MacBook Air interface standard:
1. 2010 and 2011 version MacBook Air SSD is 6+12 pin, the dimension is 109 x 24 mm(SATA-bus interface.
2. For MacBook Air 2012 SSD is 8+18 pin, the dimension is 109x 24 mm(SATA-bus interface)
2012 version MacBook Pro SSD is 8+18 pin, the dimension is 89 x 33 mm(SATA-bus interface).
3. For MacBook Air SSD 2013 and 2014 and 2015 version include two sides golden-finger, one side is 16+12 pin, the other side is 11+14 pin, the dimension is 89 mm*24 mm. It's PCIe X4 bus interface.
4. For MacBook Pro SSD 2013 and 2014 and 2015 version include two sides golden-finger, one side is 16+12 pin, the other side is 11+14 pin , the dimension is 89x33 mm. It's PCIe X4 bus interface.

Note:
Please allow 1-3cm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.


Specifications of M.2 NGFF SSD to 18+8pin SSD Adapter Card for MacBook Air 2012 A1465 A1466

  • Brand

    OEM

  • SKU

    479834454_MY-797782373

  • Warranty Type

    No Warranty

  • Model

    Adapter Card

What’s in the box

1 x Adapter Card
1 x Screwdriver
4 x Screw

Product CodeADAQU77J36
ManufacturerApple
ConditionNew
Weight0.3kg
